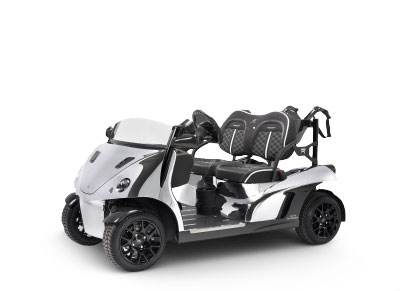

Mansory Prism

The creative collaboration between Mansory Design and Garia reaches new heights in the Mansory Prism, the fastest and lightest Garia ever made.

STANDARD FEATURES

  • Lithium batteries, powered by Samsung, incl. performance pack..
  • Automotive style shocks and springs.
  • Pre-wired GPS power outlet inside dashboard.
  • Self-retracting automotive turn signal stalk operating lights, turn signals and horn.
  • Off, reverse, neutral and forward gears operated by ignition key.
  • Hydrolink® water filler system.
  • Reverse warning indicator.
  • 12 V output in dashboard.
  • Hazard lights.
  • Ergonomically placed direction selector.

EXTERIOR DESIGN

  • Body color, chrome painted with Bugatti lack.
  • 12" Gun Grey, custom painted.
  • Rims and hubcaps, black diamond cut details.
  • Side view mirrors, Mansory clear coated carbon.
  • Sill cover, Mansory clear coated carbon.
  • Front mudguards, Mansory clear coated carbon.
  • Rear mudguards, Mansory clear coated carbon.
  • Rear bumper, Mansory with diffuser, clear coated carbon.
  • Load area sides, Mansory clear coated carbon.
  • Rear service hatch, Mansory clear coated carbon.
  • Utility box, Mansory clear coated carbon.
  • Rear bumper trim, Mansory clear coated carbon.
  • Golf bag carriers, Mansory clear coated carbon.

INTERIOR DESIGN

  • Mansory sports seat (bucket seats), custom made with Prism edition stitching.
  • Armrest, custom leather, clear coated carbon fiber.
  • Built-in refrigerator.
  • Pedals, painted custom color.
  • Leather dashboard, Mansory clear coated carbon.
  • Dashboard trim panel, custom Mansory clear coated carbon, 3 unique bottons.
  • Dashboard lower, black alcantara.
  • Golf ball and tee holder mounted on dashboard.
  • Cupholder, clear coated carbon top.
  • Digital cluster with all relevant driver information, Mansory clear coated carbon.
  • Steering wheel, Mansory clear coated carbon with scorecard and penholder, custom leather color.
  • Steering column covers, custom leather color.

MEASUREMENTS

  • Overall length: 2330 mm/ 92"
  • Overall width: 1210 mm/ 48" (excl. mirrors).
  • Overall width: 1540 mm/ 58" (incl. mirrors).
  • Overall height: 1206 mm/ 47,5".

POWER SUPPLY/DRIVE

  • Motor: High efficient 3-phase AC motor.
  • Output rating: 3 kW (4 Hp).
  • Peak power: 11 kW (15 Hp).
  • Motor control unit: Curtis 350 amp.
  • Batteries: Lithium
  • Charger: Onboard Delta Q charger.

PERFORMANCE

  • Max forward speed: 65 km/h / 45 mph (top speed is limited to 25 mph in the U.S. due to federal low).
  • Max reverse speed: 11 km/h /6 mph.
  • Range (up to): 60 km/ 37 miles (depending on speed, use, weather etc..
  • Turning radius: 2600 mm/ 102" (outer circle).
  • Charge time: approx. 7 hours (for full charge).
  • Hydraulic brakes with discs in the front and drums at the rear.
  • Maximum motor braking and battery regeneration while driving as well as a speed switch with different driving modes called Golf, Street and Race, which adjust top speed and acceleration parameters.
  • Parking brake: Automatically engaged electromagnetic parking brake.

CHASSIS

  • Frame: Lightweight aluminum frame. 5 years warranty.
  • Rack and pinion steering.
  • Front suspension: Double wishbone suspension made from aluminum with automotive ball joints and coilovers.
  • Rear suspension: Live rear axle mounted with trailing links, Panhard rod and coilovers.
  • Robot-welded aluminum roof structure.

GENERAL

  • Dry weight (with batteries): 550 kg/ 1200 lbs.
  • Tire size: 205-50-10 or 205-30-12.
  • Payload capacity: 350 kg/ 770 lbs.
  • Seating capacity: 4 persons.
  • Weight distribution: 40/60 (front/rear).

WARRANTY

  • Standard 3 years limited vehicle warranty.
