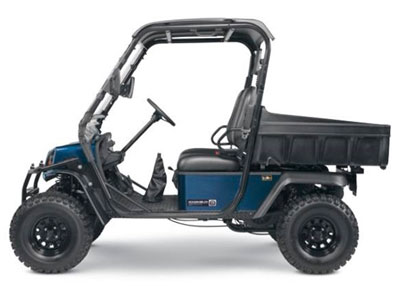

Hauler 4×4

Built for where the work takes you.

Every crew has one guy that stands above the rest. Rugged. Reliable. Won’t quit until the work is done. With powerful features built to handle anything or anywhere, you can always count on the Hauler 4X4 to lighten the load of any heavy-duty task.

User-Selectable 4WD

Engage extra power when you need it most

28-hp, EFI Gas or 22-hp, Diesel Engine

Two fuel options with enough muscle and range to tackle any job

4-Wheel Independent Suspension

A smooth ride, even on punishing paths

Standard Roll Over Protection System

Enhanced safety when operating on steep and uneven terrain

Standard Three-Point Seat Belt

Added protection for all passengers

Generous Cargo Bed

Plenty of space for gear and supplies
Dimensions
Overall Length 115.5 in (293.4 cm)
Overall Width 54.5 in (138.4 cm)
Overall Height 76 in (193.0 cm)
Wheel Base 81.5 in (207.0 cm)
Front Wheel Track 43.38 in (110.0 cm)
Rear Wheel Track 44.38 in (113.0 cm)
Ground Clearance 7.0 in (17.8 cm)
Cargo Box Width (Inside) 44.0 in (112 cm)
Cargo Box Length (Inside) 36.0 in (91 cm)
Cargo Box Depth (Inside) 10.5 in (27.0 cm)
Cargo Box Capacity
9.6 cu ft (0.27 m3)
Cargo Box Material Roto-Molded Polyethylene
Vehicle Power
Power Source Gas, 4 cycle, 43.9 ci (720 cc), EFI
Valve Train V Twin Cylinder OHV
Horsepower (kW) 28 hp (20.8 kW)
Electrical System Starter/Alternator, Solid-State Regulator
Batteries (Qty, Type) One, 12 Volt Maintenance Free
Key or Pedal Start Key
Air Cleaner Dry Cartridge with Pre-Filter
Lubrication Pressurized Oil System
Oil Filter Spin-On Oil Filter
Cooling System Air Cooled
Fuel Capacity 5.3 Gallon (20 L) Tank
Drive Train Automatic, Continuously Variable Transmission (CVT)
Manual Locking Differentials (front and rear)
Transaxle Differential with Helical Gears, Ground Speed Governor,
Forward/Reverse
Gear Selection Manual Forward-Neutral-Reverse Lever
Rear Axle Ratio 14.38:1 (Forward),14.36:1 (Reverse)
Performance
Seating Capacity and Style 2 Person
Curb Weight 1370 lb (621 kg)
Bed Load Capacity 800 lbs (363 kg)
Vehicle Load Capacity 1200 lbs (544 kg)
Outside Clearance Circle 33.2 ft (10.1 m)
Speed (Level Ground) 25 mph ± 1 mph (40.1 kph ± 1.6 kph)
Towing Capacity 1200 lb (544 kg)
Steering and Suspension
Steering Self-Compensating Rack and Pinion
Front Suspension Independent, MacPherson Strut Type
Rear Suspension Independent, MacPherson Strut Type
Service Brake 4 Wheel Hydraulic Disc Brakes
Parking Brake Hand Operated
Front & Rear Tires Terra-Trac 25x10-12
Body & Chassis
Front Body and Finish Injection Molded TPO
Rear Body and Finish Steel. Base Coat/Clear Coat
Standard Color Black
