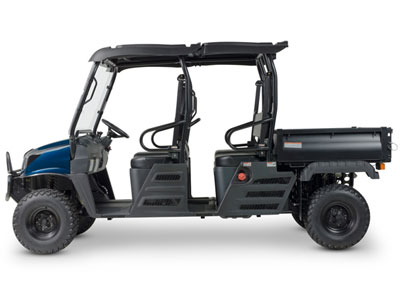

Crew Hauler 4×4

Built for where the work takes you.

Every crew has one guy that stands above the rest. Rugged. Reliable. Won’t quit until the work is done. With powerful features built to handle anything or anywhere, you can always count on the Hauler 4X4 to lighten the load of any heavy-duty task.

User-Selectable 4WD

Engage extra power when you need it most

28-hp, EFI Gas or 22-hp, Diesel Engine

Two fuel options with enough muscle and range to tackle any job

4-Wheel Independent Suspension

A smooth ride, even on punishing paths

Standard Roll Over Protection System

Enhanced safety when operating on steep and uneven terrain

Standard Three-Point Seat Belt

Added protection for all passengers

Generous Cargo Bed

Plenty of space for gear and supplies
Dimensions
Overall Length 144.5 in (367.3 cm)
Overall Width 60.7 in (154.2 cm)
Overall Height 76.4 in (194.1 cm)
Wheel Base 108.7 in (276.1 cm)
Front Wheel Track 49.7 in (126.2 cm)
Rear Wheel Track 48.3 in (122.7 cm)
Ground Clearance 12.0 in (30.5 cm)
Cargo Box Width (Inside) 56.2 in (142.7 cm)
Cargo Box Length (Inside) 38.5 in (98.0 cm)
Cargo Box Depth (Inside) 11.5 in (29.2 cm)
Cargo Box Material Metal
Vehicle Power
Power Source 3 Cylinders 61.5 cu in (1,007 cc)
Valve Train OHV
Horsepower (kW) 22 hp (16.4 kW)
Electrical System Starter/Alternator
Batteries (Qty, Type) One, 12 Volt (690 CCA @ 0° F)
Key or Pedal Start Key
Air Cleaner Dry-Cyclone Type
Lubrication Pressurized
Oil Filter Spin-On
Cooling System Liquid Cooled
Fuel Capacity 7.4 Gallon (28.0 L) tank
Drivetrain Belt, Continuously Variable Transmission (CVT)
Transaxle Differential Lock (Limited Slip Device on Front Axle)
Gear Selection Forward H - Forward L - Neutral - Reverse
Rear Axle Ratio 20:1 (Low), 13.5:1 (High), 8.5:1 (Reverse)
Performance
Seating Capacity and Style 4-Person - Bench
Curb Weight 1825 lbs (840 kg)
Bed Load Capacity 660 lbs (300 kg)
Vehicle Load Capacity 1325 lbs (600 kg)
Outside Clearance Circle 35.4 ft (10.7 m)
Speed - High (Level Ground) 25 mph (40.2 kph)
Speed - Low (Level Ground) 10.6 mph (17.0 kph)
Speed - Reverse 15.6 mph (25.0 kph)
Towing Capacity 1300 lb
Steering and Suspension
Steering Rack and Pinion
Front Suspension Independent, MacPherson Strut Type
Rear Suspension Independent, Double A-Arm (Wishbone Type)
Parking Brake Single Point Engagement
Front Tires 25 x 10 x 12
Rear Tires 25 x 10 x 12
Body & Chassis
Frame Welded Steel with DuraShield powder coat
Front Body and Finish Injection Molded Body
Rear Body and Finish Injection Molded Body (Metal Cargo Bed)
Standard Color Patriot Blue
