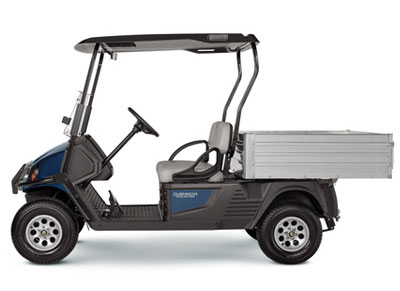

Hauler Pro

Built to honor the extra mile.

With a 72-volt electric drivetrain, the Hauler PRO series brings advanced AC power to your jobsite that is 25 percent more efficient than DC options. But you’ll get more than an extended 50-mile range from this powerhouse. With up to a 1200-lb load capacity, 12-cu-ft cargo bed and optional limited slip differential means the Hauler PRO and PRO-X show up to work in any conditions.

72-volt AC Drivetrain

Efficient performance with up to a 50-mile range

On-board Charger

Charge from anywhere with just an extension cord

12-cu-ft Cargo Bed

Plenty of space for gear, tools and supplies

Front Bumper and Brush Guard

An extra layer of protection and durability


Safely navigate before sunup and after sundown

Optional Rear Hitch Receiver

Add towing and implements to your capabilities list
Vehicle Dimensions
Overall Length 115 in (292 cm)
Overall Width 49.4 in (126 cm)
Overall Height w/o Roof 47.3 in (121 cm) (Top of steering wheel)
Overall Height w/Struts & Roof 70.5 in (180 cm)
Wheel Base 76.0 in (193 cm)
Front Wheel Track 35.0 in (89 cm)
Rear Wheel Track 38.5 in (98 cm)
Ground Clearance 4.5 in (12 cm)
Cargo Box Width (Inside) 44.0 in (112 cm)
Cargo Box Length (Inside) 39.0 in (99 cm)
Cargo Box Depth (Inside) 12.0 in (30.5 cm)
Cargo Box Capacity & Material 12 cu ft (0.34 m3)/Roto-molded polyethylene
Power Source 72-Volts DC
Motor Type AC Induction
Horsepower (kW) 22.4HP (16.7 kW) - Measured at Peak Torque
Electrical System 72 Volt
Batteries (Qty, Type) Nine, 8-Volt Deep Cycle
Drive Train Motor Shaft Direct Drive
Battery Charger 900 Watt, 72V DC
Speed Controller 350 Amp AC
Gear Selection Forward-Neutral-Reverse
Transaxle Differential with Helical Gears
Rear Axle Ratio 17:1
Seating Capacity and Style 2 Persons - Bench
Dry Weight 910 lb (413 kg) (Without Batteries)
Curb Weight (w/ Batteries) 1475 lb (669 kg)
Bed Load Capacity 800 lb (363 kg)
Vehicle Load Capacity 1200 lb (544.31 kg)
Outside Clearance Circle 21.5 ft (6.55 m)
Speed (Level Ground) 14.5 mph +/- 0.5 mph (23.34 kph +/-0.8 kph)
Programmable Speed Range 5 - 19 mph (8 - 30.5 kph)
Towing Capacity 1500 lb (680.39 kg) max load
Steering and Suspension
Steering Self-compensating rack and pinion
Front Suspension Leaf Springs w/ Hydraulic Shock Absorbers
Rear Suspension Leaf Springs w/ Hydraulic Shock Absorbers
Service Brake Rear Wheel Mechanical Self-adjusting Drum
Parking Brake Self-compensating, Single Point Engagement
Front Tires K500 18 x 8.5 - 8 (6 Ply Rated) Black Wheel
Rear Tires K500 18 x 8.5 - 8 (6 Ply Rated) Black Wheel
Body & Chassis
Frame Welded Steel. Durashield™ Powder Coat
Front Body and Finish Injection Molded TPO
Rear Body and Finish Injection Molded TPO
Standard Color Patriot Blue
