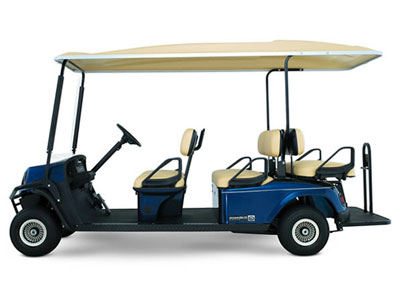

Shuttle 6

Be moved (in a good way).

Designed for larger operations, the Shuttle
6 helps you efficiently go about your
business of moving people around the
plant, your grounds or the jobsite.
Forward-facing seating for four, with rear-
facing bench seat for two additional
passengers mean your crew or guests will
arrive and depart in comfort and style.

Front Bumper and Brush Guard

Added vehicle protection and durability

Headlights (Standard)

Safely navigate in any lighting condition

Rear-Facing Third-Row Seat with Grab Bar

Transport larger groups across the jobsite

Cupholders

Enhanced convenience and functionality

Bench Seating

Comfortable, spacious seating for multiple passengers

Optional Windshield

Drive comfortably without exposure to the elements
Dimensions
Overall Length 136.0 in (345 cm)
Overall Width 48.5 in (123 cm)
Overall Height (No Canopy) 48.6 in (123 cm) (Top of steering wheel)
Overall Height (With Canopy) 72.0 in (183 cm)
Wheel Base 93.5 in (237 cm)
Front Wheel Track 34.2 in (86.7 cm)
Rear Wheel Track 38.0 in (97 cm)
Ground Clearance @ Differential 4.3 in (11 cm)
Vehicle Power
Power Source 48 Volts DC
Motor Type Shunt Wound
Continuous Horsepower (kW) 2.5 hp (1.9 kW)
Intermittent Horsepower 18.1 hp (13.5 kW) @ 1900 rpm
Electrical System 48 Volt
Batteries (Qty, Type) Eight, 6 Volt Deep Cycle
Key or Pedal Start Pedal Start
Battery Charger 48 VDC Delta Q, 120/230 VAC UL & CSA
Speed Controller 400 Amp Precision Drive System (PDS)
Drivetrain Motor Shaft Direct Drive
Transaxle Differential with Helical Gears
Gear Selection Dash-Mounted Forward-Neutral-Reverse
Rear Axle Ratio 14.7:1
Performance
Seating Capacity 6 Person
Dry Weight 890 lb (405 kg) (Without Batteries)
Curb Weight 1385 lb (630 kg)
Vehicle Load Capacity 1200 lb (545 kg)
Outside Clearance Circle 25.5 ft (7.8 m)
Speed (Level Ground) 13 mph ± 0.5 mph (21 kph ± 0.8 kph)
Towing Capacity N/A
Steering and Suspension Steering Self-Compensating Reduction Rack and Pinion Front Suspension Leaf Springs with Hydraulic Shock Absorbers Rear Suspension Leaf Springs with Hydraulic Shock Absorbers Service Brake Rear Wheel Mechanical Self-Adjusting Drum Parking Brake Self-Compensating Single Point Engagement Front Tires Links 18 x 8.50 - 8 (4 Ply Rated) Rear Tires Links 18 x 8.50 - 8 (4 Ply Rated)
Body & Chassis
Frame Welded Steel. DuraShield Powder Coat
Front Body and Finish Injection molded TPO
Rear Body and Finish Fiberglass & Gelcoat
Standard Color Patriot Blue
