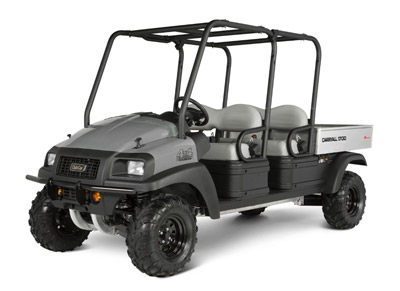

Carryall 1700 SE 4wd
The original full-size, work-crew vehicle has room for four passengers and 800 pounds of cargo, ensuring that your team can get the job done on the first trip. The Carryall 1700 SE builds on the features of the rugged Carryall 1700, adding additional seating without sacrificing cargo capacity.
With unstoppable power and an extra-large chassis, this vehicle comes equipped with our exclusive IntelliTrak™ system, an automatic, 4-wheel-drive system that senses the ground you’re on and gives you more traction when you need it.
It can be easily customized to do any job easily and efficiently.
Carryall 1700 SE 4-WD heavy-duty capabilities
- Up to 3/4-ton total vehicle capacity
- Tow up to 1600lb
- IntelliTrak™ - intelligent 4-wheel drive automatic engagement
| Gasoline | Diesel | |
|---|---|---|
| Engine/Motor Type | Kawasaki 4-cycle, industrial grade | Kubota D722, industrial grade |
| Controller | NA | NA |
| Displacement | 675 cc | 719 cc |
| Cylinders | Twin-cylinder | 3-cylinder |
| Valving | OHV | OHV |
| Cooling | Air Cooled | Liquid-cooled |
| Horsepower (Rated) | 20.1 hp (15.0 kW) rated @ 3400 RPM per SAE J1349 |
20.0 hp (15.0 kW) rated @ 3600 RPM per SAE J1995 |
| Max Torque | 36.5 ft/lb (49.5 Nm) | 33 ft/lb (45 Nm) |
| Lubrication | Full-pressure, spin-on oil filter | Full-pressure, spin-on oil filter |
| Governor | Automatic ground speed sensing | Automatic ground speed sensing |
| Transmission | Wide ratio CVT; 3.7:1 low, 0.59:1 high | Wide ratio CVT; 3.7:1 low, 0.59:1 high |
| Front/Rear Differential | IntelliTrak™ Automatic 4-wheel Drive | IntelliTrak™ Automatic 4-wheel Drive |
| Gear Selection | Forward/Neutral/Reverse | Forward/Neutral/Reverse |
| Gear Ratio | 5.39:1 forward; 7.79:1 reverse; 3.3:1 differential |
5.39:1 forward; 7.79:1 reverse; 3.3:1 differential |
| Ignition | Transistorized magneto | Compression |
| Battery | 12-volt 500 CCA 105 min Reserve | 12-volt 500 CCA 105 min Reserve |
| Headlights | 2-55w Halogen | 2-55w Halogen |
| Fuel Delivery System | Carburetor | Mechanical injection |
| Fuel Capacity | 6.5 gal (24.6 L) | 6.5 gal (24.6 L) |
| Steering Mechanism | Rack and pinion with Tilt Steering | Rack and pinion with Tilt Steering |
| Suspension (Front) | Independent double A-arms with coil-over shocks | Independent double A-arms with coil-over shocks |
| Suspension (Rear) | Semi-independent 4-link solid axle | Semi-independent 4-link solid axle |
| Brakes | Twin piston front, single piston, rear hydraulic disk |
Twin piston front, single piston, rear hydraulic disk |
| Park Brake | Mechanical Disk | Mechanical Disk |
| Body (Front & Finish) | GE Geloy high-impact, scratch-resistant, injection molded color, Automotive finish | GE Geloy high-impact, scratch-resistant, injection molded color, Automotive finish |
| Body (Frame and Rear) | Tubular aluminum | Tubular aluminum |
| Tires (Front) | All-terrain, 25 x 10.5-12, 4-ply | All-terrain, 25 x 10.5-12, 4-ply |
| Tires (Rear) | All-terrain, 25 x 10.5-12, 4-ply | All-terrain, 25 x 10.5-12, 4-ply |
| Wheelbase | 114 in (225.3 cm) | 114 in (225.3 cm) |
| Overall Height | 78.6 in (199.6 cm) | 78.6 in (199.6 cm) |
| Overall Length | 157.6 in (400.3 cm) | 157.6 in (400.3 cm) |
| Bed L x W x H (Cargo Box) |
48.8 x 49.8 x 10.9 in (124 x 126.5 x 27.7 cm) |
48.8 x 49.8 x 10.9 in (124 x 126.5 x 27.7 cm) |
| Ground Clearance (Differential) |
8.2 in (20.8 cm) | 8.2 in (20.8 cm) |
| Track Width (Front) | 48.8 in. (124 cm) | 48.8 in. (124 cm) |
| Track Width (Rear) | 48.8 in. (124 cm) | 48.8 in. (124 cm) |
| Max Width (w/o Mirrors) | 58.5 in. (148.5 cm) | 58.5 in. (148.5 cm) |
| Outside Clearance Circle (dia.) |
428 in (1087.1 cm) | 428 in (1087.1 cm) |
| Turning Radius | 206.5 in (524.5 cm) | 206.5 in (524.5 cm) |
| Curb Weight | 1630 lbs (739.36 kg) | 1750 lbs (793.8 kg) |
| Vehicle Rated Capacity | 1600 lb (725.8 kg) | 1600 lb (725.8 kg) |
| Bed Load Capacity | 800 lb (363.2 kg) | 800 lb (363.2 kg) |
| Trailer Weight Rating | 1800 lb (816.5 kg) | 1800 lb (816.5 kg) |
| Combination Rated Capacity |
1800 lb (907.2 kg) | 1800 lb (907.2 kg) |
| Speed | 25 mph (40.2 km/h) | 25 mph (40.2 km/h) |
| Warranty | 2-year/2,000 hour limited | 2-year/2,000 hour limited |
