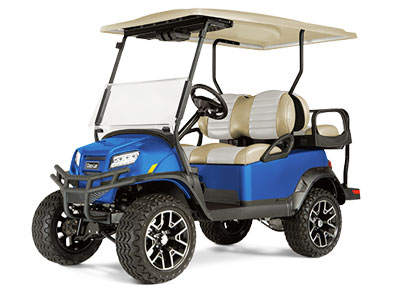

Onward Lifted 4 Passenger
Expand horizons for you and your friends with the Onward™ 4 Passenger Lifted PTV from Club Car. With proprietary suspension that provides higher ground clearance and a smooth ride, customizable accessories such as a sound system and locking trunk, and legendary Club Car durability, every drive is prime time for adventure.
Do More
With best-in-class proprietary suspension and legendary Club Car manufacturing, the only thing your perfect Onward™ is missing is a personal touch. Choose your colors, seats, accessories, and more, then enjoy having a fun excuse to get outside a bit more often.
| Gasoline | Electric | |
|---|---|---|
| Engine | 404 cc Subaru, 4-cycle, Overhead Cam with Electronic Fuel Injection | N/A |
| Horsepower | 14.0 hp (10.3 kW) rated @ 3600 RPM per SAE J1940 | 3.3 hp (2.4 kW) rated; Peak 13 hp (9.6 kW) |
| Battery | One (1) 12-volt | Six (6) 8-volt |
| Charger | N/A | E.R.I.C. automatic, 48-volt; UL and CSA listed |
| Speed Range | 19 mph (30 kph) | 19 mph (30 kph) |
| Steering | SportDrive™ — Self-compensating double reduction helical rack & pinion | SportDrive™ — Self-compensating double reduction helical rack & pinion |
| Front Suspension | Independent wide track Double A-arm with Hydraulic Shocks | Independent wide track Double A-arm with Hydraulic Shocks |
| Rear Suspension | Patent pending w/ Track Bar and Automotive Grade Jounce Bumpers | Patent pending w/ Track Bar and Automotive Grade Jounce Bumpers |
| Brakes | Self-adjusting, rear wheel mechanical drum | Self-adjusting, rear wheel mechanical drum |
| Park Brake | Foot actuated, 3-position | Foot actuated, 3-position |
| Body and Finish | Front, Painted TPO; Rear, Painted Surlyn | Front, Painted TPO; Rear, Painted Surlyn |
| Tires | 22 x 10 - 10 Tubeless | 22 x 10 - 10 Tubeless |
| LxWxH | 114 x 49 1/2 x 80 1/2 | 114 x 49 1/2 x 80 1/2 |
| Wheelbase | 67 1/2 inches/Metric | 67 1/2 inches/Metric |
| Ground Clearance | 6 3/8 inches/Metric | 6 3/8 inches/Metric |
| Tread | Front/Rear: 40 3/4/39 1/2/Metric | Front/Rear: 40 3/4/39 1/2/Metric |
| Total Vehicle Weight | 875 lb/Metric | 1125 lb/Metric |
| Frame Type | AlumiCore™ — Ladder-style aluminum box beam | AlumiCore™ — Ladder-style aluminum box beam |
| Fuel Tank Capacity | 6.0 gal (22.7 L) | N/A |
