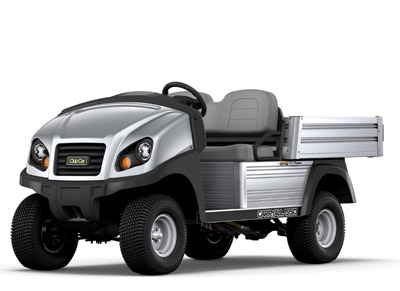

Carryall 550
Maneuver over the most difficult terrain with the Carryall 550, featuring 6.4 inches of ground clearance (the most in its class), a sturdy differential guard and rough terrain tires to resist nails and other sharp objects.
Its rugged, aircraft grade aluminum frame, chassis and cargo box provide a steady ride powered by a 404cc gasoline engine or 48-volt electric powertrain. An optimal turning radius lets you navigate in the tightest spaces, making this the perfect vehicle for construction sites, industrial locations and other formidable work tasks.
The Legend. Reborn!
Start with the dependable, reliable, legendary Carryall Turf pedigree and infuse it with added power, efficiency, versatility and comfort. The all-new Carryall lives up to our 20-year legacy of performance and dependability while adding best-in-class upgrades across the line. Let the next era begin. One thousand jobs. … One Carryall.
VersAttach™ Bed Attachment System
Check out our new VersAttach™ bed, designed to with accessories in mind. Our portfolio of accessories include the all new, configurable and removable track-based bed attachment system for carrying tools and equipment. Whether you're carrying rakes, trimmers, water coolers, leaf blowers, ladders, or cargo; we've got the holders and bed-dividers you need to get the job done.
Limited Slip Differential
If you’re looking for a compact, versatile utility vehicle with off-the-beaten-path performance, then consider adding an optional Limited Slip Differential. With its best-in-class 14.0 hp rated Subaru® gas engine with EFI, you’ll conquer new terrain by automatically delivering traction as needed without damaging turf and operating in areas typically reserved for 4x4s.
Standard 12-Volt Powerport
Stay connected all day long with the standard automotive 12-volt powerport for all your devices. This dashboard powerport accepts all standard automotive power adapters to charge your radio, smart phone, tablet, or other devices on the go.
| Electric | Gasoline | |
|---|---|---|
| Engine/Motor Type | 48-volt DC | Subaru, 4-cycle |
| Controller | 500 Amp - Solid State | NA |
| Displacement | NA | 404 cc |
| Cylinders | NA | Single |
| Valving | NA | Overhead Cam |
| Cooling | NA | Air Cooled |
| Horsepower (Rated) | 3.7 hp (2.7kW) rated; Peak 20 hp (14.9 kW) |
14.0 hp (10.3 kW) rated @ 3600 RPM per SAE J1940 |
| Max Torque | 71 ft-lb (96.2 N-m) rated @ 1450 RPM |
19.91 ft lb (27.0 N-m) rated @ 2400 RPM |
| Lubrication | NA | Splash lubrication |
| Governor | NA | Ground Speed |
| Transmission | Direct drive, double reduction helical gear |
Continuously Variable Transmission (CVT) |
| Gear Selection | Forward/Neutral/Reverse | Forward/Neutral/Reverse |
| Gear Ratio | 12.32:1 | 11.47:1 forward; 15.63:1 reverse |
| Ignition | NA | Capacitive Discharge |
| Battery | Eight 6-volt Flooded Lead Acid | 12-volt 500 CCA; 105 min Reserve |
| Charger | DeltaQ QuiQ (1 kW High Frequency) | NA |
| Headlights | Two 37.5 Watt Halogen | Two 37.5 Watt Halogen |
| Fuel Delivery System | NA | Electronic Fuel Injection (EFI) |
| Fuel Capacity | NA | 5.5 Gallons (20.8 L) |
| Steering Mechanism | Self-adjusting Rack and Pinion | Self-adjusting Rack and Pinion |
| Suspension (Front) | Independent leaf spring with dual hydraulic shocks | Independent leaf spring with dual hydraulic shocks |
| Suspension (Rear) | Semi-independent leaf spring with dual hydraulic shocks | Semi-independent leaf spring with dual hydraulic shocks |
| Brakes | 4-wheel Mechanical Drum | 4-wheel Mechanical Drum |
| Park Brake | Foot Operated, Multi-lock | Foot Operated, Multi-lock |
| Body (Front & Finish) | ArmorFlex with automotive paint/clearcoat | ArmorFlex with automotive paint/clearcoat |
| Body (Frame and Rear) | Aluminum | Aluminum |
| Tires (Front) | 22 x 10-10, 4-ply Turf tread; 22 x 10-10, 6-ply heavy-duty all-terrain | 22 x 10-10, 4-ply Turf tread; 22 x 10-10, 6-ply heavy-duty all-terrain |
| Tires (Rear) | 22 x 10-10, 4-ply Turf tread; 22 x 10-10, 6-ply heavy-duty all-terrain | 22 x 10-10, 4-ply Turf tread; 22 x 10-10, 6-ply heavy-duty all-terrain |
| Wheelbase | 78.1 in (198.3 cm) | 78.1 in (198.3 cm) |
| Overall Height | 51.2 in (130.0 cm) | 51.2 in (130.0 cm) |
| Overall Length | 118 in (299.7cm) | 118 in (299.7cm) |
| Bed L x W x H (Cargo Box) | 44.2 x 47.5 x 10.5 in (112.2 x 120.6 x 26.6 cm) |
44.2 x 47.5 x 10.5 in (112.2 x 120.6 x 26.6 cm) |
| Ground Clearance (Differential) | 6 in (15.2 cm) | 6 in (15.2 cm) |
| Track Width (Front) | 36.6 in (92.9 cm) | 36.6 in (92.9 cm) |
| Track Width (Rear) | 39.5 in (100.3 cm) | 39.5 in (100.3 cm) |
| Max Width (w/o Mirrors) | 50.3 in (127.7cm) | 50.3 in (127.7cm) |
| Outside Clearance Circle (dia.) |
268 in (680.7 cm) | 268 in (680.7 cm) |
| Turning Radius | 126.5 in (321.3 cm) | 126.5 in (321.3 cm) |
| Intersecting Aisle | 84.2 in (213.9 cm) | 84.2 in (213.9 cm) |
| Curb Weight (w/ Batteries) | 1402 lb (635.9 kg) | 942 (427.2 kg) |
| Vehicle Rated Capacity | 900 lb (408.2 kg) | 900 lb (408.2 kg) |
| Bed Load Capacity | 500 lb (226.7 kg) | 500 lb (226.7 kg) |
| Trailer Weight Rating | 900 lb (408.2 kg) | 900 lb (408.2 kg) |
| Combination Rated Capacity |
900 lb (408.2 kg) | 900 lb (408.2 kg) |
| Speed | 5-17 mph (8-27 kph) | 15-17 mph (24-27 kph) |
| Warranty | 4 yr limited battery warranty; 3 yr limited powertrain/frame; 2 yr limited remaining vehicle |
3 yr/3000 hr limited powertrain/frame; 2 yr limited remaining vehicle |
